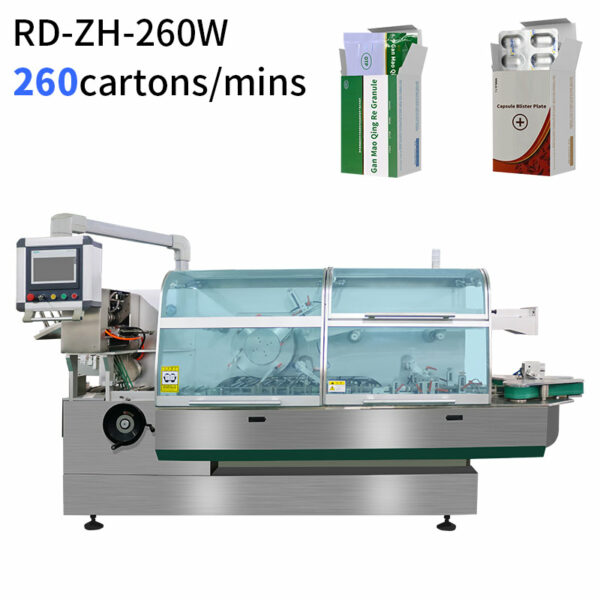

Our cartoning machine guaranteed for life, can unfold the box and fill it with bottles, sachets, and blister plates. It may also be linked to a counting machine, blister packaging machine, and other similar machines to boost workplace automation.
Up to 260 carton/min
Appplicable For Bister Plate, Bottle, Sachet Etc
20 Days Fast Delivery
| Production capacity : | 260 carton/min |
| size range of carton : | size range of carton:L(70-180)*W(35-80)*H(12-50)mm |
| Requirements of instructions : | size range of instructions:L(80-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Total power : | 5.0 KW |
| Power supply : | 220/380V 50Hz（customizable） |
| Net weight of machine : | 3400kg |
| Overall size of machine : | 6800*1600*1860mm |
1.The machine body is made of stainless steel or nickel-chromium plated material, and the welding position is tempered. It has the advantages of corrosion resistance, non-toxicity, harmlessness and durability.
2.High intelligence.Detection points are distributed in various workstation, such feeding , loading capacity detection , packaging into conveyor belt detection, quantity of packages inspection, carton in place inspection and etc.
3.The machine adopts a rotating quadrilateral double planetary wheel structure to open the carton, and have two pre-forming devices to ensure the forming effect of the carton and improve the working efficiency.
4.The main motor, sensor, frequency converter and pneumatic components of the cartoning machine all adopt international famous brand products with stable performance and guaranteed quality.
5. All spare parts of our cartoning packing machine are coded to facilitate the daily maintenance of customers.
6. It has high integration and can be connected with tail sealing machine, aluminum plastic blister packaging machine and wrapping machine according to production requirements.
