Blister packing machine for honey wIth the functions of fully automatic forming, feeding, vedação, punching, contando, and batch number coding, It can automatically seal perfume, jam, honey into an aluminum-plastic composite panel or aluminum plate. An ideal way to pack your product efficiently and cost-effectively.
Até 9,600 bolhas/h

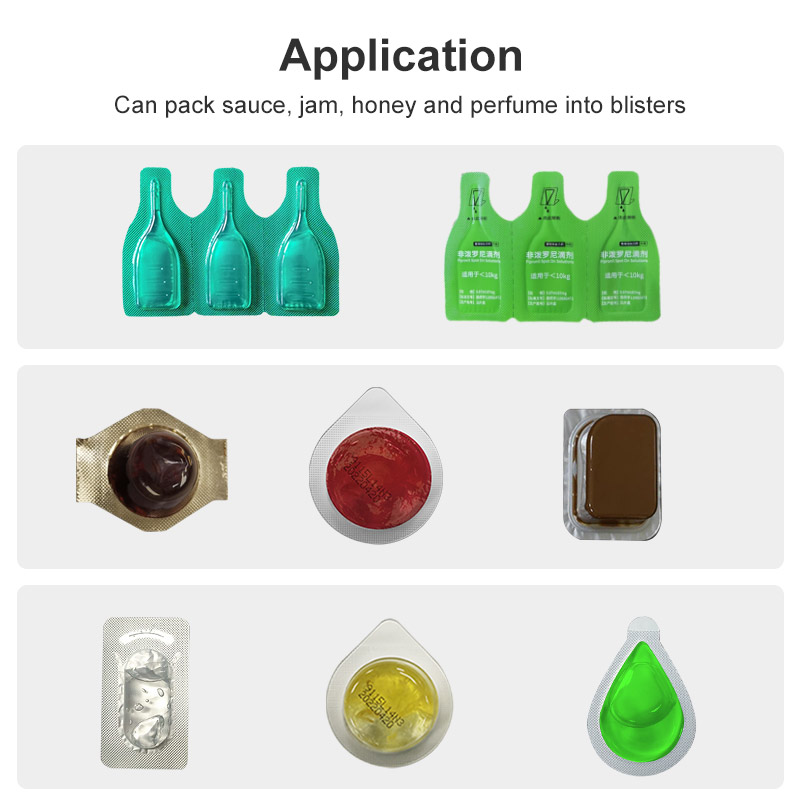

Applicable for perfume, jam, honey…
15 Dias de entrega rápida
Suitable for PVC、PS、PET material
| Model : | DPP-260S |
| Máx.. Capacidade de produção : | 9,600 plates/h |
| Máx.. Shaping Dia. And Depth : | 240*170*15mm Max. Depth 26mm（custom-made） |
| Standard Plate : | 80*57milímetros |
| Potência total : | 6.2kW |
The working principle of butter blister packing machine involves several key steps:
Material Loading:
The process begins with loading the aluminum and plastic materials into the respective feeding systems.
Heating and Forming:
The alu and plastic materials are heated separately as they pass through heating stations. Once heated, the alu foil is formed into the desired blister shape using a forming station.
Cutting:
The sealed blisters are then cut into individual units, and excess material is trimmed away.
Precisa de uma máquina farmacêutica Com necessidades especiais?
Nossos engenheiros experientes podem resolver seu problema!
