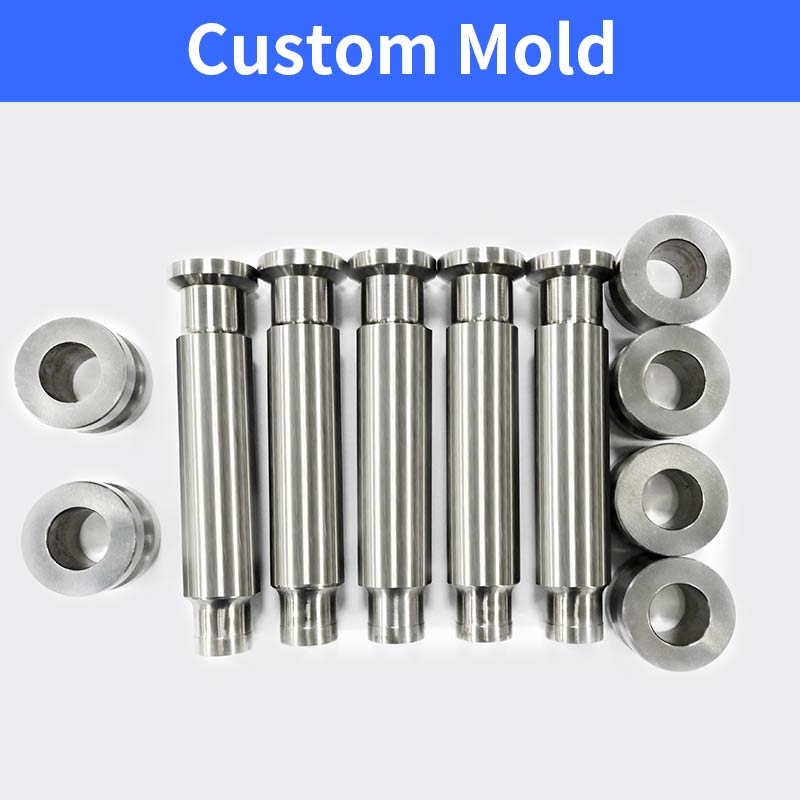

Also called as multi-station tablet press, can efficiently press powder and granules into tablets with diverse diameters and thicknesses. And with customized dies, the ingredients can even be pressed into for your needs, such as effervescent tablet, disinfectant tablets, and dishwashing tablets.

사양:

최대 45,600개/시간

최대 정제 직경 50mm

최대 압력 120kn

15일 빠른 배송

어떻게 작동하나요?

루이다 패킹 회전식 정제 프레스기는 단순히 분말을 정제로 압착하는 것 외에도, 원활하고 효율적인 생산 공정을 보장하기 위한 작업 섹션과 기술을 갖추고 있습니다.

주요 특징

모델 ZP-15E ZP-19E
최대 압력 120노트 100노트
최대 정제 직경 50mm 40mm
정제의 최대 두께 25mm 15mm
최대 생산 용량 18000개/시간 45600개/시간
7.5kw 5.5kw
전압 380/220V 50Hz(맞춤형)
size 1250×980×1650mm
무게 1850kg

1. Large output, high efficiency and high cost performance. The max pressure 120KN, max tablet diameter is 50mm, max output 45600pcs/h, max filling is 50mm, and the max tablet thickness is 25mm.

2. Meet GMP requirements. The whole shell is made of stainless steel, and the press chamber is isolated from the external environment with plexiglass, which has good sealing performance.

3. The turntable is made of nodular cast iron QT500, pressed by solid bar material, with strong hardness, heat resistance, wear resistance and good system stability.

4. The tablet press machine is equipped with pressure overload protection device, once overloaded, it will automatically stop to avoid equipment damage.

5. This tablet press machine is equipped with a turntable for double dust suction, six suction ports up and down, with good powder removal effect and a clean surface of the turntable.

6. The transmission system is independently and modularly arranged under the main body of the machine, effectively avoiding the contamination of medicines by trace impurities caused by the friction of the machine.

주요 부품
