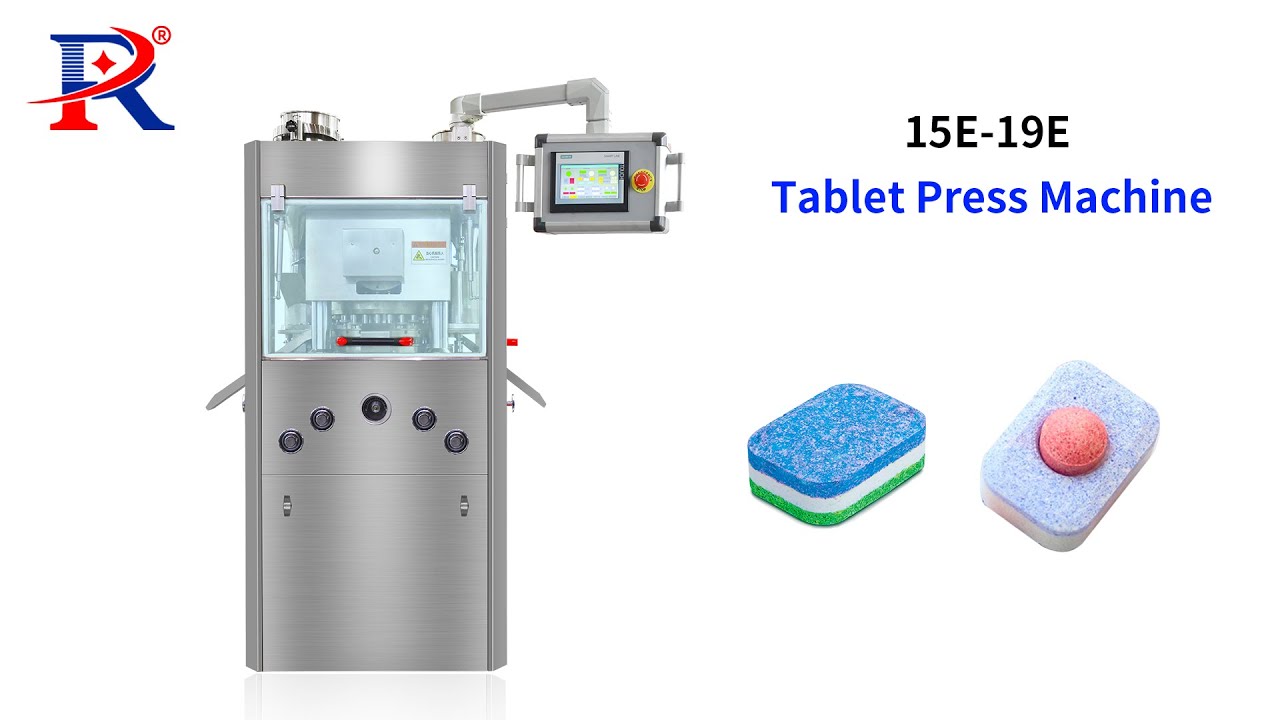

ZP-15E Döner Tablet Pres Makinesi

ZP-15E Rotary Tablet Press Machine
ZP-15E Rotary Tablet Press Machine-1
ZP-15E Rotary Tablet Press Machine-2
ZP-15E Rotary Tablet Press Machine-3
ZP-15E Rotary Tablet Press Machine-4
ZP-15E Rotary Tablet Press Machine
ZP-15E Rotary Tablet Press Machine-1
ZP-15E Rotary Tablet Press Machine-2
ZP-15E Rotary Tablet Press Machine-3
ZP-15E Rotary Tablet Press Machine-4

ZP-15E Döner Tablet Pres Makinesi

Ayrıca çok istasyonlu tablet pres olarak da adlandırılır, Toz ve granülleri farklı çaplara ve kalınlıklara sahip tabletlere verimli bir şekilde basabilir. Ve özelleştirilmiş kalıplarla, the ingredients can even be pressed into for your needs, such as effervescent tablet, disinfectant tablets, and dishwashing tablets.

Şartname:

45.600adet/saat'e kadar

Tabletin maksimum çapı 50mm

Maksimum basınç 120kn

15 Gün Hızlı Teslimat

Nasıl Çalışır?

Sadece tozu bir tablete bastırmanın dışında, Ruida Paketleme Döner Tablet Pres Makinesi, pürüzsüz ve verimli bir üretim süreci sağlamak için çalışma bölümleri ve teknolojilerle donatılmıştır..

Ana Özellikler

ÖrnekZP-15EZP-19E
Maksimum Basınç120kn100 kn
Tabletin Maksimum Çapı50mm40 mm
Tabletin Maksimum Kalınlığı25mm15 mm
Maksimum Üretim Kapasitesi18000 adet/saat45600 adet/saat
Güç7.5KW5.5KW
Gerilim380/220V 50Hz (özelleştirilebilir)
boyut1250×980×1650mm
Ağırlık1850kilogram

1. Large output, high efficiency and high cost performance. The max pressure 120KN, max tablet diameter is 50mm, max output 45600pcs/h, max filling is 50mm, and the max tablet thickness is 25mm.

2. Meet GMP requirements. The whole shell is made of stainless steel, and the press chamber is isolated from the external environment with plexiglass, which has good sealing performance.

3. The turntable is made of nodular cast iron QT500, pressed by solid bar material, with strong hardness, heat resistance, wear resistance and good system stability.

4. The tablet press machine is equipped with pressure overload protection device, once overloaded, it will automatically stop to avoid equipment damage.

5. This tablet press machine is equipped with a turntable for double dust suction, six suction ports up and down, with good powder removal effect and a clean surface of the turntable.

6. The transmission system is independently and modularly arranged under the main body of the machine, effectively avoiding the contamination of medicines by trace impurities caused by the friction of the machine.

Ana Parçalar
