Blisterverpackungsmaschine
Blister packing machine is commonly used in the pharmaceutical, Essen, and healthcare industries. It securely packages tablets, Kapseln, ampoules, and other small products, protecting them from moisture, Licht, and contamination, while also providing tamper-evident packaging for enhanced safety and extended shelf life.
Anwendung：
Blister Packaging Machine is suitable for various different capabilities, including capsules, Tabletten, and liquids.
How It Work
With the functions of fully automatic forming, feeding, heat sealing, batch number coding, punching and counting. It can automatically seal tablets, Kapseln, candy, and sauces into an alu-pvc or alu-alu blisters.
PVC Filling
PVC sheets are filled into the machine.
Forming Blisters
PVC or aluminum foil is molded into a fitted room for your product.
Product Filling
Tablets / capsules are filled into the available blister.
Heat Sealing
The top aluminum foil seals up the plate.
Scrap Recycling
The rest of the materials are recycled for further usage.
Discharging
A full blister plate is finished and ejected.
The Complete Range of Blister Packing Machines
A wide variety of machine models with different capacities and budgets for you to choose.

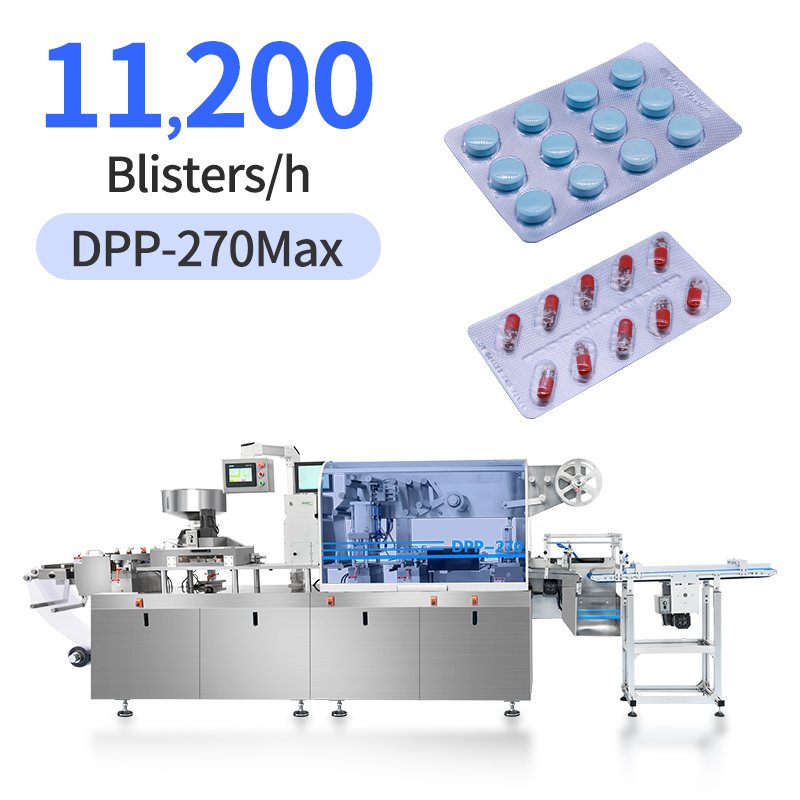

| Modell | DPP-90R | DPP-100L | DPP-180Pro | DPP-270L | DPP-270Max | DPH-270Max |
| Ausgabe | 2,300 Blasen/h | 2,300 Blasen/h | 4,800 Blasen/h | 9,600 Blasen/h | 11,200 Blasen/h | 27,000 Blasen/h |
| Max. Blister Size | 80*110*15mm | 80*110*15mm | 170*120*15mm | 255*125*15mm | 255×125*15mm | 205×260*12mm |
| Max. Depth | 26mm | 26mm | 26mm | 26mm | 26mm | 26mm |
For Tablet / Capsule and Other Solids :
For Perfume / Jam / Honey and Other Liquid :
Eine helfende Hand beim Verpacken Ihrer Produkte
Eine helfende Hand beim Verpacken Ihrer Produkte
Wir sind bestrebt, Maschinen von höchster Qualität herzustellen, die den GMP-Standards entsprechen und gleichzeitig effiziente und nützliche Funktionen bieten.
Wide Range Of Materials & Anwendungen
The Blister packing machine can be available for Aluminum, PVC, PS, PET and etc. And it can form a clean packaging for any solid or liquid.
One Machine For Dual Performances
The machine is available for Alu-Alu foil and Alu-PVC plate, which optimizes your cost and workshop space for other machines.
Cost-effective
Compared to the bottle, the blister pack is more cost-effective. 6 standard plates filled with 60 capsules are about 0.053 dollars, while a bottle filled with 60 capsules is 0.062 dollars.
Wir stehen Ihnen mit umfassendem Service zur Seite
Stehen Sie während des gesamten Prozesses an Ihrer Seite, Von der Wahl der passenden Maschine bis zur lebenslangen Pflege.
Lebenslange Garantie
Um erstklassige Leistung für lange Zeit sicherzustellen, Wir bieten eine kostenlose Reparatur innerhalb an 3 Jahre und kostenlose Ersatzteile innerhalb 1 Jahr. Danach, Wir versprechen eine lebenslange kostenlose technische Beratung.
Schnelle Lieferung in 7 Tage
95% unserer Standardmaschinen sind auf Lager. In diesem Fall, Der Versand kann innerhalb von 24 Stunden eintreffen 7 Tage. Was ausführliche maßgeschneiderte Produkte betrifft, Es ist nur 20 Tage für die Lieferung.
24/7 Online-Service
Unsere sachkundigen Kundenexperten und Ingenieure gehen gezielt auf Ihre Bedürfnisse ein und lösen alle Ihre Probleme 24 Std..
Häufig gestellte Fragen
With modular design, it is easy and convenient to change in 10 Zu 15 minutes depending on different machines.
One machine is applicable for multiple purposes by easily changing a mold. It can pack for different sizes, depths with different materials, such as aluminum-plastic and aluminum-aluminum foil. As for the liquid machine, it only needs to change the mold and the feeder.
CE: Europäische GMP-Konformität: Gute Herstellungspraktiken ISO: Internationale Normungsorganisation FDA: Lebensmittel- und Arzneimittelbehörde
Hier sind einige wichtige Besonderheiten, die Sie berücksichtigen müssen, such as applicable material, Produktionskapazität, Maschinengröße, und Garantie. Da die Kosten für die Maschine ein riesiges Budget darstellen, Ein umfassender und langer After-Sales-Service kann auch für ein langfristiges Geschäft von großem Nutzen sein. If you have a need of packing with PVC/ALU or ALU/ALU, it’s better to get a machine available for two application.
- Check whether the screws of each station are tightened and the mold pressure is overloaded before each production.
- Lubricate the cam box and the connection with mold regularly.
- When the equipment is not in use, disassemble and oil seal the forming, heat sealing and cutter dies.
What Is Blister Packaging Machine?
A blister packaging machine is a mechanical device used in the pharmaceutical, medical, and other industries to package products in blister packs.
Blister packs consist of individual compartments or cavities that hold the product, typically tablets, Kapseln, or other solid dosage forms, within a transparent plastic or aluminum material.
Blister packaging machines are widely used in pharmaceutical and healthcare industries due to their ability to provide a secure and tamper-evident packaging solution.
Advantages of Blister Packaging
Blister packaging, a popular form of packaging, involves sealing a product between a transparent plastic blister and a backing card, providing several benefits.
Product Protection
Blister packaging provides excellent protection, particularly solid dosage forms like tablets and capsules. It creats a barrier against moisture, Licht, oxidation, and physical damage to maintain product integrity and extend shelf life.
Accurate Dosing
Blister packs enable precise unit-dose packaging, minimizing the risk of dosage errors. Each cavity in the blister pack contains a specific quantity, making it easier for patients to follow prescribed regimens and enhancing medication adherence.
Tamper-Evidence
Blister packaging provides tamper-evident features, ensuring the safety and integrity of the products. Any attempt to tamper with the blister pack is readily visible, providing consumers with assurance that the product has not been compromised.
Product Identification
Transparent blister packs allow easy identification of products, facilitating verification. This is particularly useful for patients and healthcare professionals to verify the content, check expiration dates, and ensure medication accuracy.
Improved Branding
Blister packaging provides opportunities for branding and marketing. The packaging can be customized with colors, logos, and product information, enhancing brand recognition and providing a platform for promotional messages.
Convenient Packaging
The individual blister compartments can be quickly and hygienically opened, providing ready access to the product. The compact size and flat shape of blister packs make them portable, stackable, and suitable for travel or on-the-go use.
