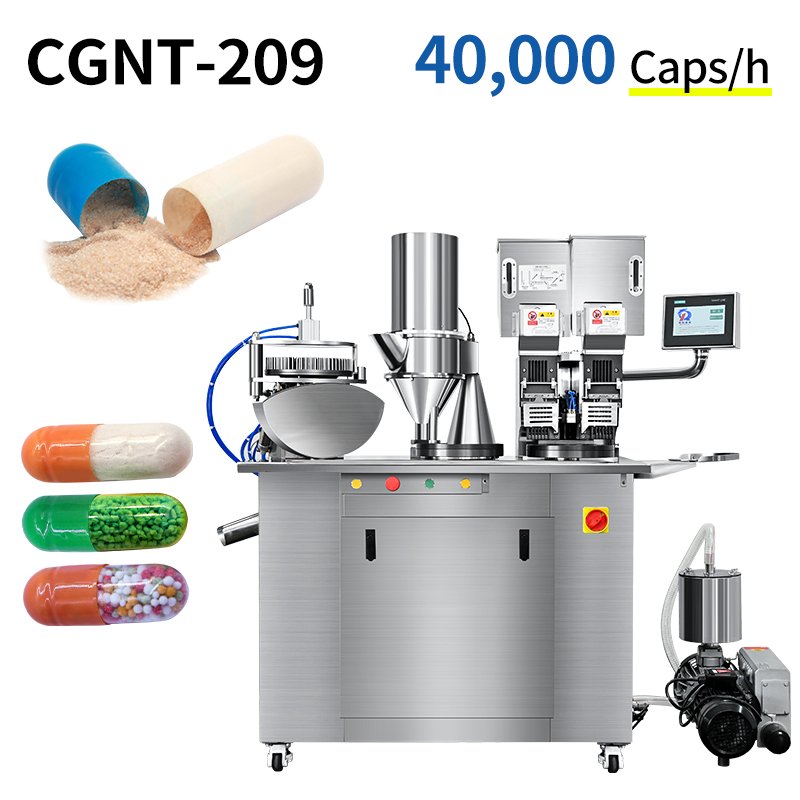

Semi-automatic Capsule Filler

Semi-automatic Capsule Filler

Semi-automatic capsule filler operates through a sequential process that involves several key steps: Empty capsules are loaded into a hopper, where they are separated and oriented with their open ends facing upwards. Semi capsule filling machine precisely dispenses the required quantity of powder or granules into the bodies of the separated capsules. Once filled, the machine moves the filled capsule bodies to capsule locking station where the capsule caps are placed on top and pressed to close the capsules securely. Completed capsules are then ejected from the machine.

Throughout the process, operators typically monitor and intervene as needed to ensure smooth operation and quality control. This semi-automatic approach strikes a balance between manual labor and automation, offering efficiency and accuracy while retaining some degree of operator involvement for flexibility and oversight.

تخصيص:

يصل إلى 40,000 caps/h

ينطبق على #000 ~ 5 كبسولة

مناسبة للمسحوق, حبيبة, حبيبات مضغوطة

اطلب اقتباس

How capsule machine semi automatic filler works？

The semi auto capsule filler works by manually placing empty capsules into the machine, which then automates the process of filling the capsules with the desired material before sealing them.

الخصائص الرئيسية

السعة الإنتاجية :	40,000 pcs/h
منتج قابل للتطبيق :	قوة、حبيبة、حبيبات مضغوطة、tablet

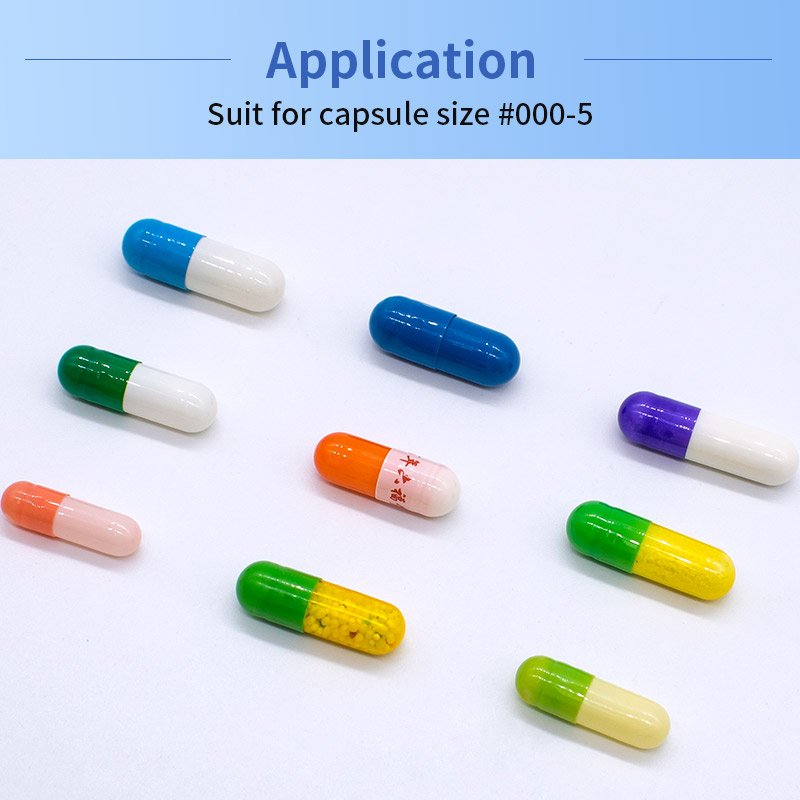

Applicable capsule：	000, 00,0,1,2,3,4,5#
قوة :	380/220 50Hz（customizable）
Total power :	2.2 KW

Semi auto capsule filler machine offer a more affordable option compared to fully automatic capsule filling machine, making them suitable for smaller production volumes and businesses with budget constraints.

Semi automatic capsule filler allow for versatile production as they can be easily adjusted to accommodate different capsule sizes and materials, enabling efficient production of various products.

Semiauto capsule filler commercial are relatively easy to operate and require less specialized training, making them accessible for operators with basic technical skills.

Operators have greater control over the filling process, ensuring accurate dosing of materials and reducing the likelihood of wastage or errors during production.
