120L Otomatik dikey kartonlama makinesi

automatic cartoning machine for packing blister

120L Otomatik dikey kartonlama makinesi

120L automatic vertical cartoning machine can pack blister plates, tüpler, pouch, strips and other into cartons. Designed for products that are inserted horizontally into the carton. Cartoners are often integrated into larger automated packaging lines, with sensors and PLC (Programmable Logic Controller) systems ensuring precise operation and minimal human intervention.

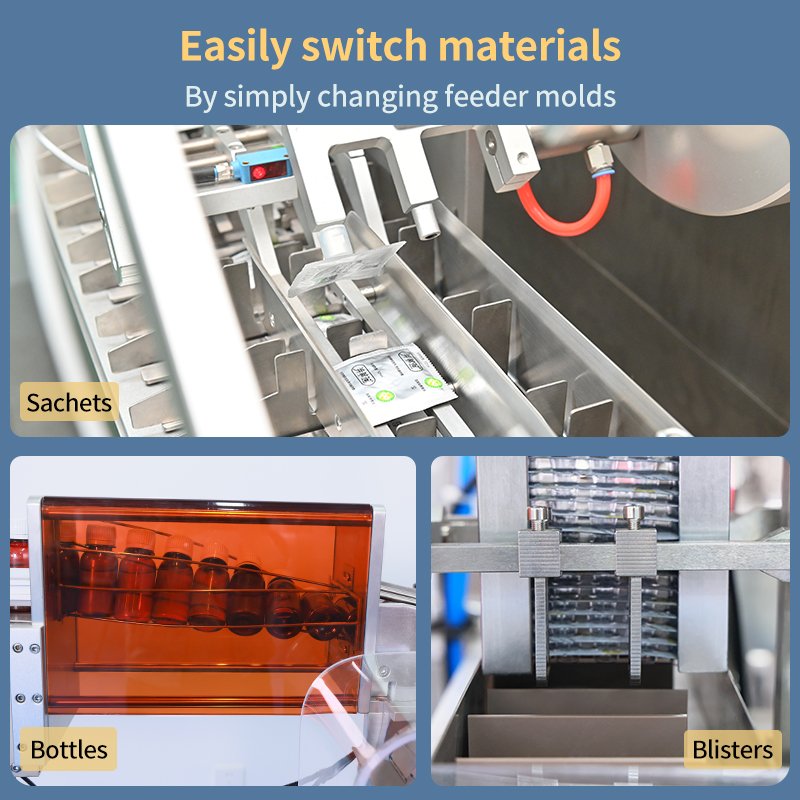

Blister cartoning packing machine can be adjusted to handle different carton sizes and types of products, offering versatility in packaging operations. These machines significantly increase packaging speed and efficiency compared to manual packing, making them essential in high-volume production environments. Cartoning machines are widely used across various industries including: pharmaceuticals, food and beverage, cosmetics…

In summary, tablet cartoning machine automates the process of carton erection, filling, and sealing, thereby enhancing productivity and ensuring consistent packaging quality.

Spesifikasyon:

Kadar 125 karton/dakika

Bister plakalar için uygulanabilir, şişe, poşet vb.

20 Günler Hızlı Teslimat

Teklif isteyin

How aluminum blister strip cartoning machine Works

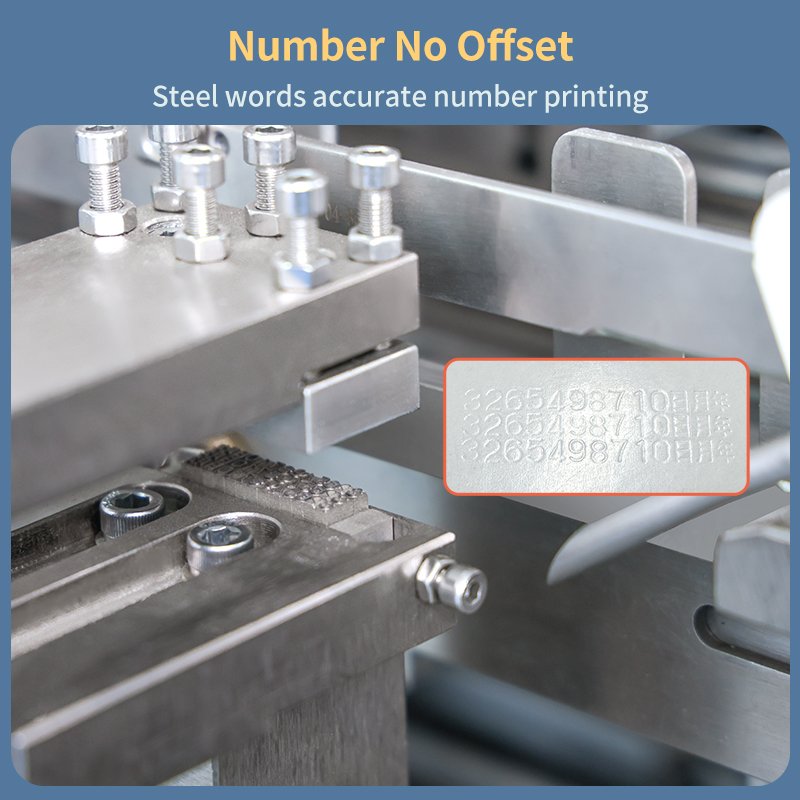

Blister strip cartoning machine can pack products of various specifications on one machine.High degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton，printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.

Ana Özellikler

Üretim kapasitesi :	Maksimum. 125 karton/dakika
size range of carton:	L(65-150)W(35-85)H(12-45)mm
Talimatların Gereksinimleri	Talimatların boyut aralığı:L(78-250)*W(85-170)mm
	Talimatların katlanır süreleri:1-4 katlamak
	Talimatlar Ağırlık:60-70G/㎡
Total power	1.10 KW
Power supply	220/380V 50Hz （Özelleştirilebilir）
Makinenin net ağırlığı	1500kilogram
Makinenin genel boyutu	215011401800mm

1.All the materials are made of stainless steel or nickel-chromium plated material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position is tempered and durable.

2.Dual clutch design, when the main motor overload or folding machine failure, start protection function to ensure the safety of equipment and personnel.

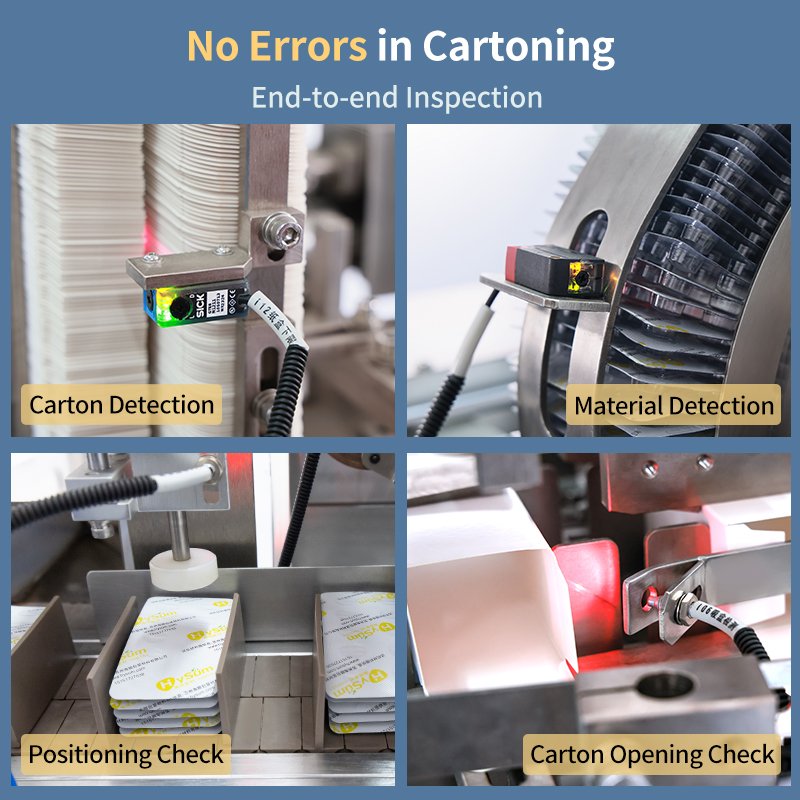

3.High intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyer belt, number of packages, carton in place and so on.

4.Three detection were carried out in the packaging process of the products and instructions, and 100% of the unqualified products were rejected.

5.The feeding part of machine adopts double servo motor,speed up to 120 karton/dakika,compared with single servo motor,it has fast speed and stable operation.

6.When the machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.

7.All spare part are engraved with codes,convenient customer to daily maintenance and repair.
