Our cartoning machine guaranteed for life, can unfold the box and fill it with bottles, sachets, and blister plates. It may also be linked to a counting machine, blister packaging machine, and other similar machines to boost workplace automation.
까지 125 carton/min

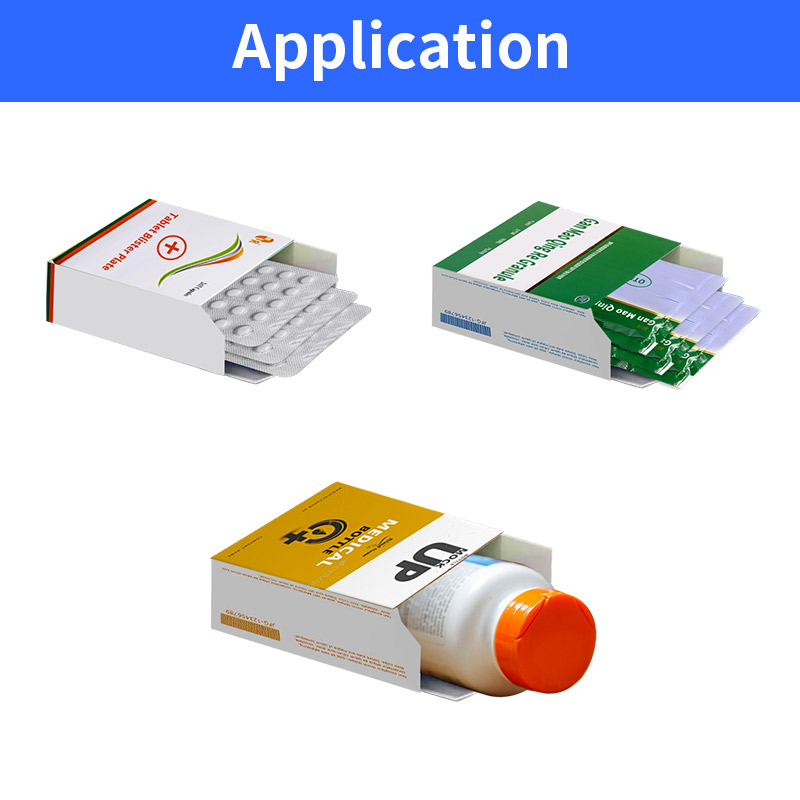

Appplicable For Bister Plate, 병, Sachet Etc
20 일 빠른 배송
| 생산 능력 : | 35-125 carton/min |
| size range of carton : | L(70-185)*W(35-90)*H(14-50)mm |
| Requirements of instructions : | size range of instructions:L(78-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| 총 전력 : | 2.0 KW |
| 전원공급장치 : | 220/380V 50Hz(맞춤형) |
| 기계의 순중량 : | 1600킬로그램 |
| 기계의 전체 크기 : | 4300*1100*1550mm |
1.All the materials are made of stainless steel or nickel-chromium plated material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position is tempered and durable.
2.Dual clutch design, when the main motor overload or folding machine failure, start protection function to ensure the safety of equipment and personnel.
3.High intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyer belt, number of packages, carton in place and so on.
4.Three detection were carried out in the packaging process of the products and instructions, 그리고 100% of the unqualified products were rejected.
5.The feeding part of machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.
6.When the machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.

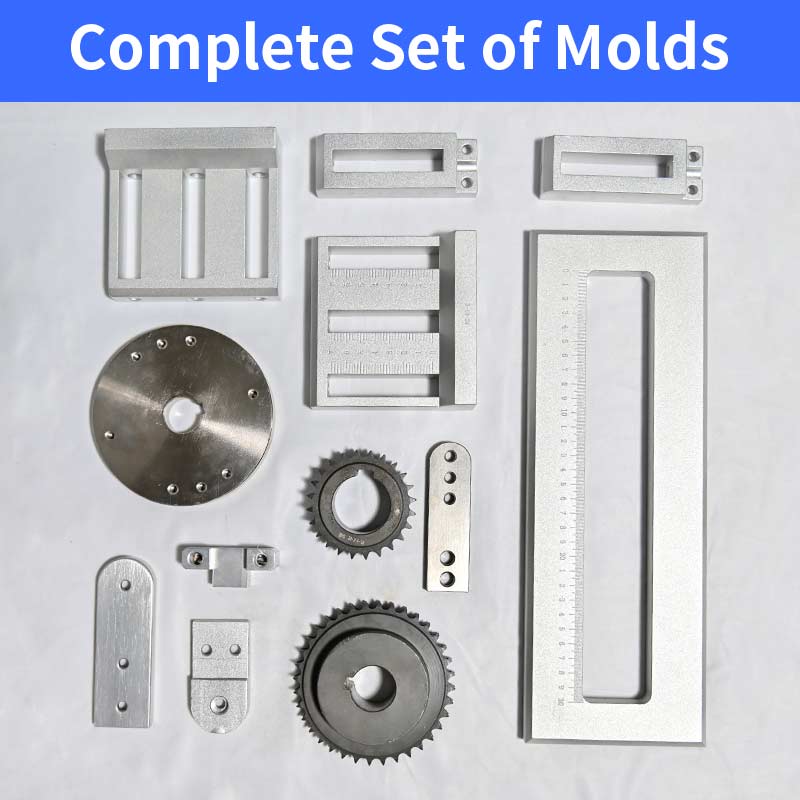

7.All spare part are engraved with codes,convenient customer to daily maintenance and repair.
특별한 요구가 있는 제약 기계가 필요합니다.?
숙련된 엔지니어가 귀하의 문제를 해결할 수 있습니다.!
