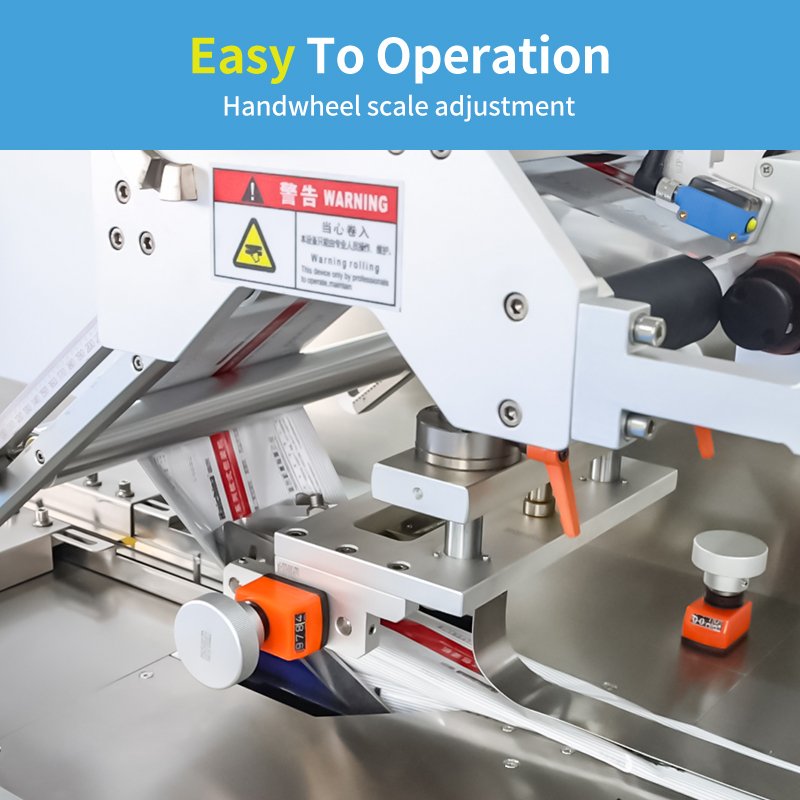

Handwheel

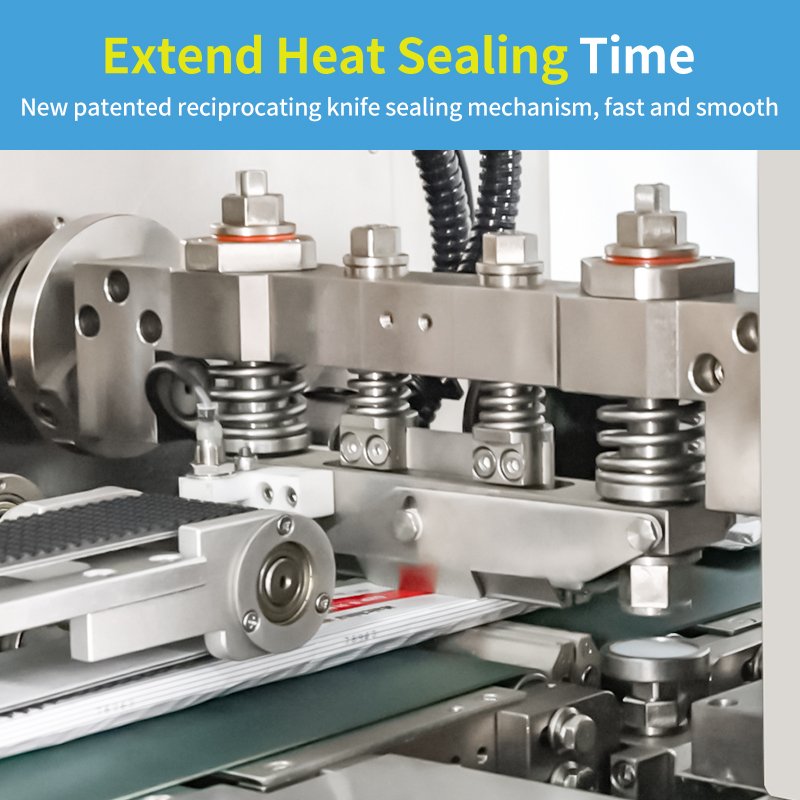

New Patented

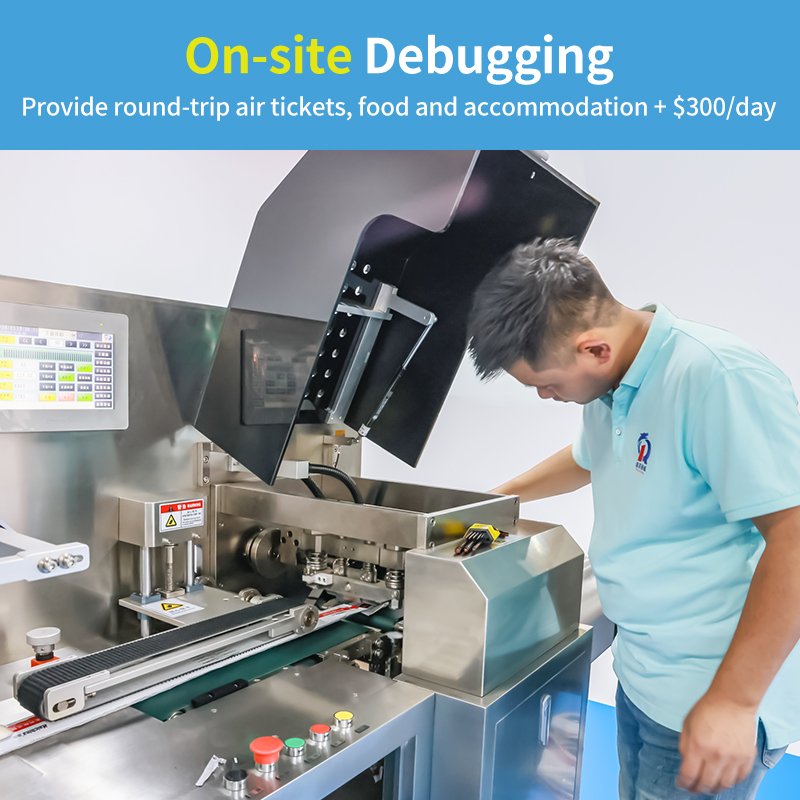

On Site Debugging

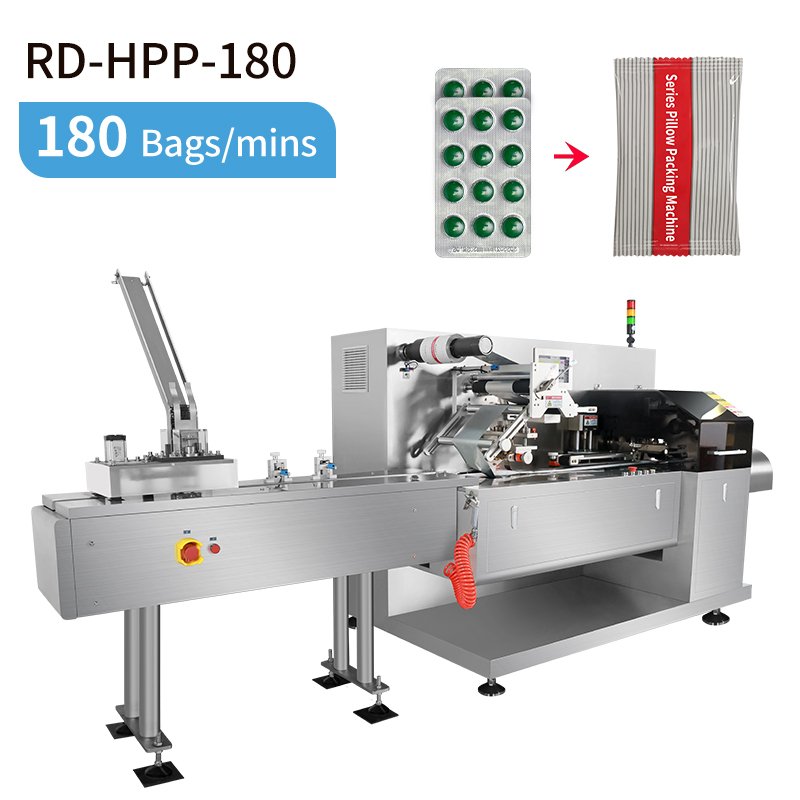

Horizontal Pillow Packaging Machine

Horizontal pillow packaging machine is a type of horizontal flow wrapping machine used to package various products in a pillow-shaped package. These machines are widely used in the food, pharmaceutical, and consumer goods industries to wrap products like candy, biscuits, bread, chocolates, medical supplies, and small items. The packaging material is typically flexible, such as plastic film or laminate, which is heat-sealed around the product. Can be used in-line with blister packaging machines and cartoning machines

Pharmazeutische Industrie: They are used to pack items like syringes, Kapseln, and medical devices in protective wraps.

Food Industry: Pillow packing machines are widely used to pack snacks like chips, biscuits, candies, and baked goods.

Consumer Goods: The machines are also used for packaging small household products, toys, hardware items, and more.

Spezifikation:

Bis zu 180 bags/mins
Maximum film width 350mm
Suit for pharmaceutical, Essen, chemicals, consumer goods etc industry

How is the automatic pillow packing machine working?

Pillow packing machine is a versatile and efficient tool for wrapping products in pillow-shaped packages, providing secure, airtight protection for a variety of goods.

Haupteigenschaften

Kapazität(Bags/mins) 30-180
Maximum film width 350mm
Stromspannung AC 380V/50Hz (Customized)
Leistung 7.0kW
Working air pressure 0.5-0.7Mpa

Pillow-Shaped Package: The final package has a distinctive pillow-like shape, with a longitudinal seal on the back and two transverse seals at both ends, creating an airtight, protective wrapping around the product.

Automatic Feeding: Products are placed on a conveyor belt, and the machine automatically feeds them into the wrapping area, ensuring consistent and efficient packaging.

Heat Sealing: The machine uses heat to seal the film longitudinally along the back and transversely at both ends.

Cutting: After sealing, the machine cuts the packages to the desired length, separating them into individual pillow packs.

Hauptteile
