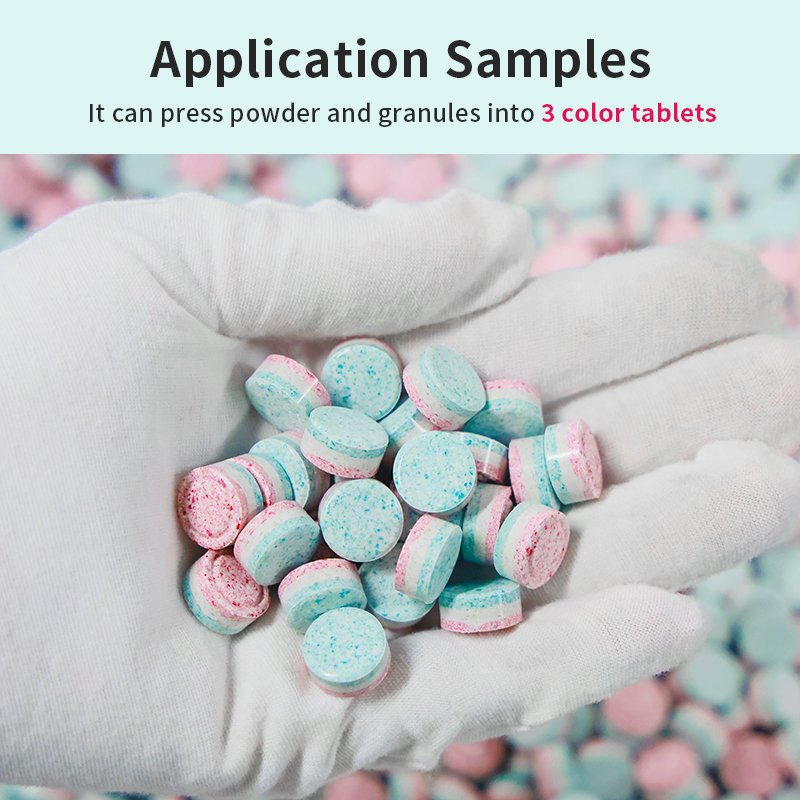

Tablet Sample

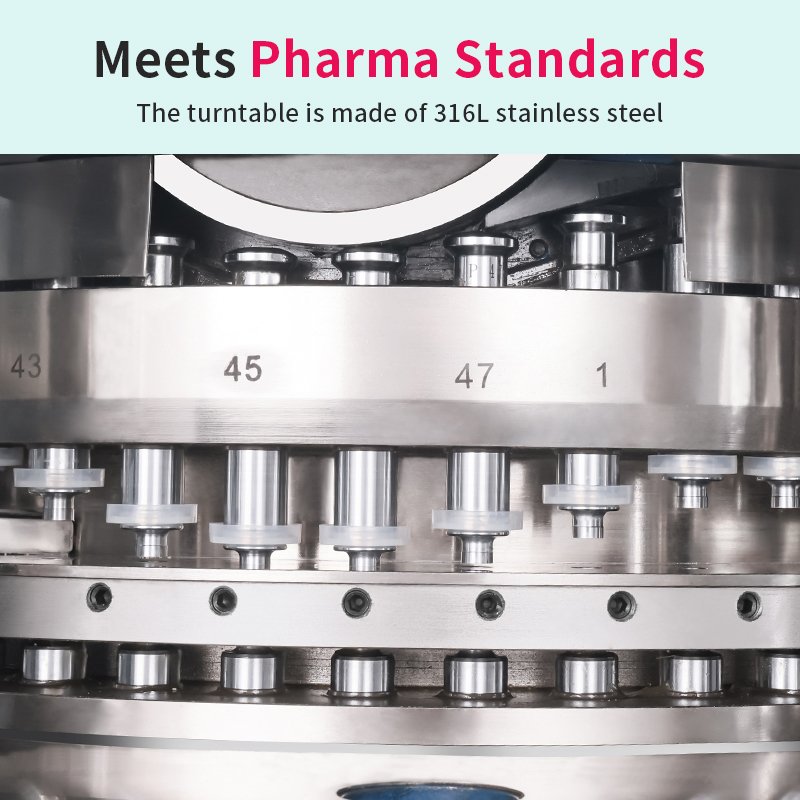

القرص الدوار

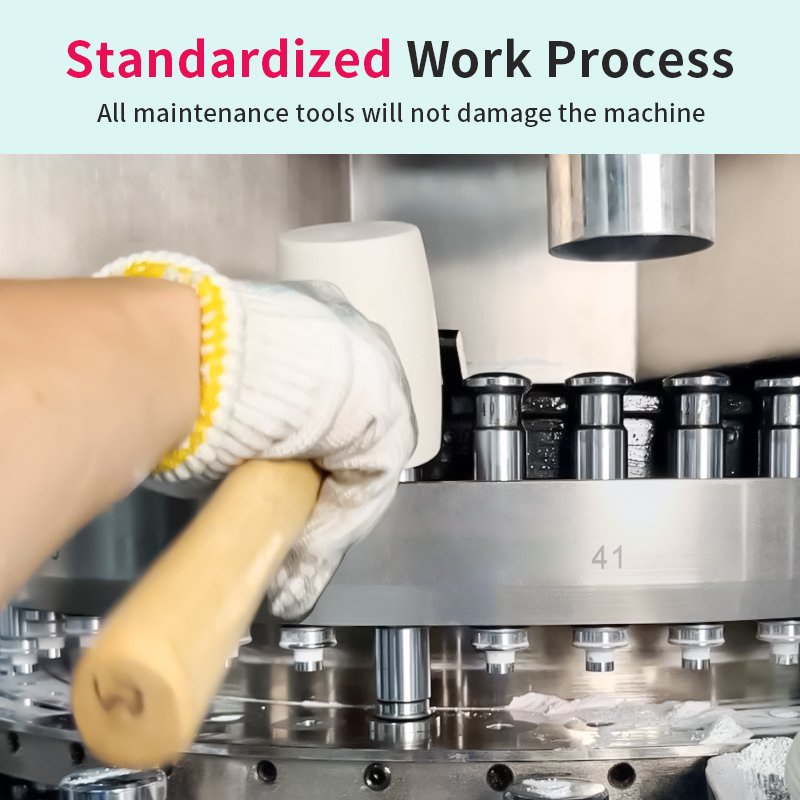

Standard Workflow

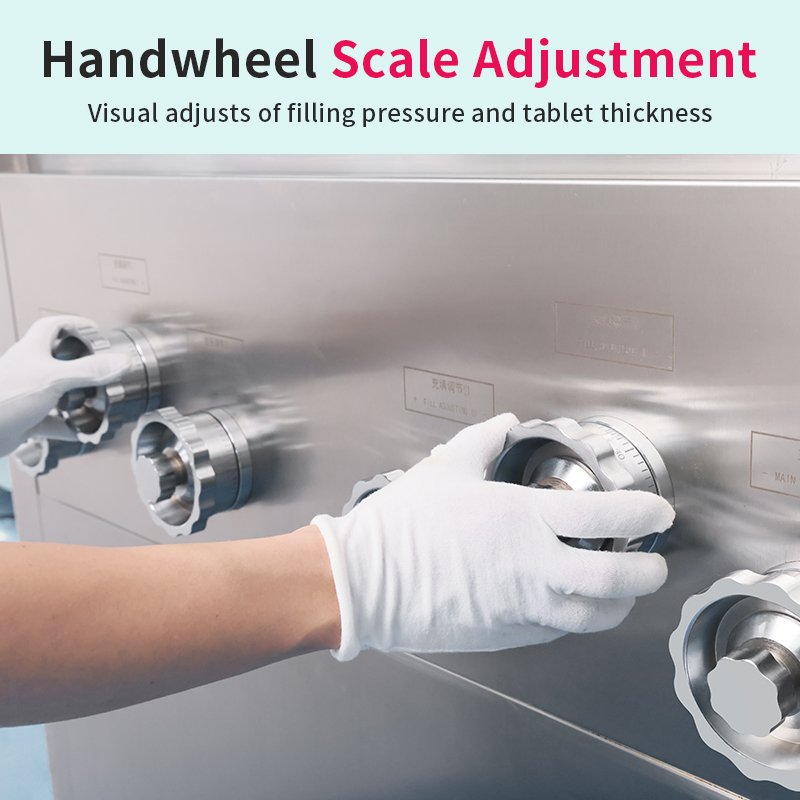

Handwheel Adjust
آلة ضغط الأقراص ثلاثية الطبقات
Tablet Sample
القرص الدوار
Standard Workflow
Handwheel Adjust

آلة ضغط الأقراص ثلاثية الطبقات

Three layer tablet press machine is designed to produce tablets with three distinct layers, typically used for creating tablets with different drug release profiles or combinations of active ingredients.

Separate Hoppers: The machine has three independent hoppers, each holding a different material for the corresponding layer. Each layer’s material is fed into the die cavity sequentially using controlled feeding mechanisms, ensuring uniform distribution.

First Layer: The first material is fed into the die cavity and pre-compressed using the pre-compression roller. This step forms a compact base layer without complete compression, leaving it ready to bond with the second layer.

Second Layer: The second material is added on top of the first layer and pre-compressed again to ensure adhesion and avoid separation.

Third Layer: The third material is introduced, completing the layering process, and the final pre-compression ensures proper bonding of all layers.

مواصفة:

Up to 395,000pcs/h

الحد الأقصى لقطر القرص 50 مم

How is the mutil layer tablet press machine working?

Three-layered tablets with distinct compositions and controlled release properties, suitable for advanced pharmaceutical formulations.

الميزات الرئيسية

نموذج ZP-27D ZP-45D ZP-73D
أقصى قطر للقرص 50 ملم 20mm 11mm
الحد الأقصى للطاقة الإنتاجية 87,480 pcs/h 202,500 pcs/h 395,000 pcs/h
أقصى ضغط 150kN 80kN 60kN
Rotary Speed 18 25 30

ميزة آلة ضغط الأقراص

After all three layers are sequentially filled and pre-compressed, the machine performs a final compression using the main compression roller.

Layer Uniformity: Precise weight and thickness control for each layer is maintained to ensure uniformity.

Compression Force Adjustment: Independent adjustment of compression forces for each layer ensures optimal bonding without cross-layer mixing.

Rejection System: Tablets with defects, such as improper layer bonding or incorrect weight, are automatically rejected.

الأجزاء الرئيسية
